ARMLEY SCHULZE COMPLETE
HAUPTWERK SPECIFICATION - ARMLEY SCHULZE 57 STOP (COMPLETE)
Alongside the standard 57 stop organ, which only incorporates the couplers and playing aids that are found on the real instrument, an enhanced organ definition file is also provided as part of the 57 stop sample set. This expands the range of possibilities by including sub- and super-octave couplers for Swell, Choir and Echo, Basscouplers for all manuals, a 32 note pedal compass, additional composition options for the Swell Gamba and Cymbel as well as a virtual enclosure for the Echo division.
Various additional stops using carefully manipulated versions of the Armley samples have also been provided. These allow for a “clean” Great chorus to 2 foot pitch, an extension of the Swell flute family, the provision of a cornet on the Echo alongside a couple of useful enhancements to the Pedal. Additionally, the Great 16’ and 8’ reeds can be played on the Choir - the appearance of the Great Trompete on the Choir may be separately voiced to give true solo reed possibilities. The standard and enhanced organs are available in single-channel (Chancel only) and multi-channel (Chancel, Nave and Surround) versions.

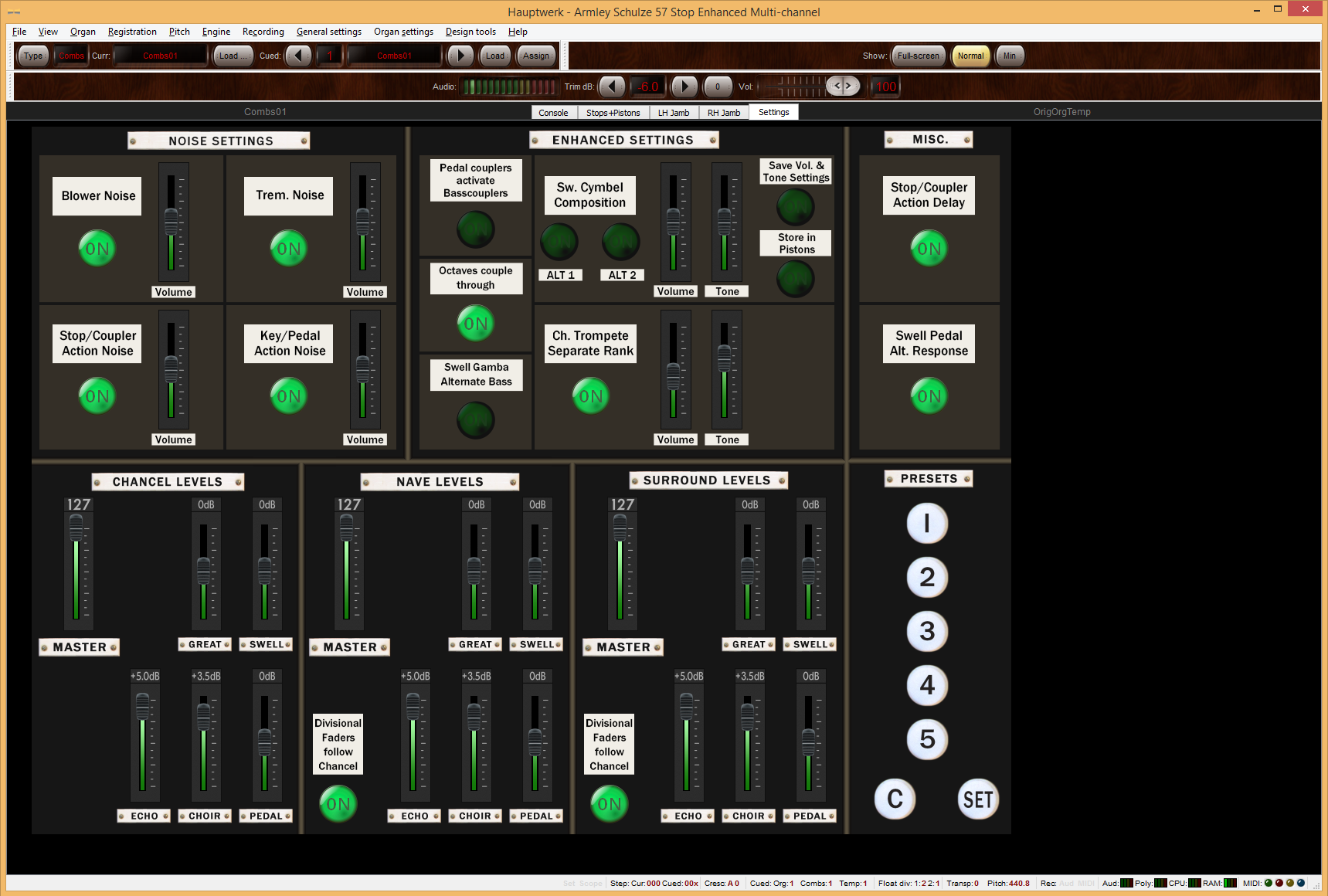

A comprehensive range of control options is available in the Settings screen for all organ definitions, allowing the overall balance of individual divisions and perspectives, with a five preset memory function provided for store and recall. In addition, flexible control of noise samples and other elements of organ control (such as stop delay and alternate Swell response) is included, along with a section dedicated to the enhanced organ controls.

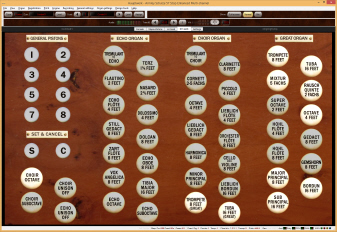

Various screen views have been programmed, which include pages optimised for those using two display monitors. The left and right hand jamb views take advantage of Hauptwerk Advanced Edition’s ability to create flexible screen layouts with differing aspect ratios, of particular benefit to those using screens in a portrait orientation.
Various additional stops using carefully manipulated versions of the Armley samples have also been provided. These allow for a “clean” Great chorus to 2 foot pitch, an extension of the Swell flute family, the provision of a cornet on the Echo alongside a couple of useful enhancements to the Pedal. Additionally, the Great 16’ and 8’ reeds can be played on the Choir -
A comprehensive range of control options is available in the Settings screen for all organ definitions, allowing the overall balance of individual divisions and perspectives, with a five preset memory function provided for store and recall. In addition, flexible control of noise samples and other elements of organ control (such as stop delay and alternate Swell response) is included, along with a section dedicated to the enhanced organ controls.
Various screen views have been programmed, which include pages optimised for those using two display monitors. The left and right hand jamb views take advantage of Hauptwerk Advanced Edition’s ability to create flexible screen layouts with differing aspect ratios, of particular benefit to those using screens in a portrait orientation.
GREAT (C - c4)
Sub Principal
Bordun
Major Principal
Gemshorn
Hohl Flöte
Gedact
Hohl Flöte
Octave
Superoctave
Rausch Quinte
Mixtur
Tuba
Trompete
Swell to Great
Choir to Great
Echo to Great
16
16
8
8
8
8
4
4
2
II
V
16
8
SWELL (C - c4)
(enclosed)
Bordun
Geigen Principal
Gamba
Salicional
*Celeste (tenor C)
Flauto Traverso
Octave
Flauto Traverso
Flauto Traverso
Cymbel
Horn
Oboe
Clarine
Tremulant
Swell octave
Swell suboctave
Swell unison off
Echo to Swell
* the stop knob is labelled “Rohr Flöte”
Geigen Principal
Gamba
Salicional
*Celeste (tenor C)
Flauto Traverso
Octave
Flauto Traverso
Flauto Traverso
Cymbel
Horn
Oboe
Clarine
Tremulant
Swell octave
Swell suboctave
Swell unison off
Echo to Swell
* the stop knob is labelled “Rohr Flöte”
16
8
8
8
8
8
4
4
2
IV
8
8
4
CHOIR (C - c4)
Lieblich Bordun
Minor Principal
Cello und Violone
Harmonica
Orchester Flöte
Lieblich Gedact
Lieblich Flöte
Octave
Piccolo
Cornett
Clarinette
Tremulant
Tuba (Gt)
Trompete (Gt)
Choir octave
Choir suboctave
Choir unison off
Swell to Choir
Echo to Choir
16
8
8
8
8
8
4
4
4
II-
16
8
ECHO (C - c4)
(enclosed)
Tibia Major
Vox Angelica
Echo Oboe
Zart Flöte
Dolcan
Still Gedact
Dolcissimo
Echo Flöte
Nasard
Flautino
Terz
Tremulant
Echo octave
Echo suboctave
Echo unison off
(Enhanced set additions are noted in green)
Vox Angelica
Echo Oboe
Zart Flöte
Dolcan
Still Gedact
Dolcissimo
Echo Flöte
Nasard
Flautino
Terz
Tremulant
Echo octave
Echo suboctave
Echo unison off
(Enhanced set additions are noted in green)
16
8
8
8
8
8
4
4
2 2/3
2
1 3/5
PEDAL (C - f1/ g1)
Sub Bass
Principal Bass Wood
Open Metal
Violon
Sub Bass
Bordun (Sw)
Quinte
Octave
Violoncello
Flöten Bass
Octave
Bombarde
Posaune
Trompete
Great to Pedal
Swell to Pedal
Choir to Pedal
Echo to Pedal
32
16
16
16
16
16
10 2/3
8
8
8
4
32
16
8
ACCESSORIES
Great and Pedal pistons coupled
Generals on Pedal foot pistons
Generals on Swell foot pistons
Basscouplers to all manuals
Generals on Pedal foot pistons
Generals on Swell foot pistons
Basscouplers to all manuals
Reversible pistons
Great to Pedal, Swell to Pedal, Swell to Great
Reversible foot pistons
Great to Pedal, Swell to Pedal
Great to Pedal, Swell to Pedal, Swell to Great
Reversible foot pistons
Great to Pedal, Swell to Pedal
Six (eight) general pistons and general cancel
Six (eight) foot pistons to the Pedal Organ
Four (eight) pistons each to the Choir and Echo Organs
Six (eight) pistons each to the Great and Swell Organs
Six (eight) foot pistons to the Pedal Organ
Four (eight) pistons each to the Choir and Echo Organs
Six (eight) pistons each to the Great and Swell Organs
Computer requirements vary depending on whether the single or multi-channel set is loaded. As Hauptwerk Lite Edition has no sample memory restriction, this would certainly be suitable for running the single-channel set, although the polyphony restriction of 1024 voices may be noticeable when using the multi-channel set. In addition, to take advantage of multiple stereo outputs and surround sound, the Advanced Edition would be necessary as Lite Edition only permits a single stereo output.
For the single channel set, a decent quad core processor is recommended, alongside 16 GB of system memory (RAM). The multi-channel complete set really does require 32 GB or more of system RAM, alongside a fast (i5/i7/Mac M1+) multi-core processor.
The following memory usage table gives approximate memory requirements for various loading configurations when loading the single-channel sample set (Chancel samples only). Note that memory requirements are significantly reduced if the tremulant affected samples are not loaded.
For the single channel set, a decent quad core processor is recommended, alongside 16 GB of system memory (RAM). The multi-
The following memory usage table gives approximate memory requirements for various loading configurations when loading the single-
Single channel
(x3 for multi-channel*)
(x3 for multi-
24 bit
20 bit
16 bit
16 bit (no tremmed ranks loaded)
14 bit (no tremmed ranks loaded)
Uncompressed
29918 MB
●
14959 MB
●
●
Lossless
compression
compression
17236 MB
15381 MB
9039 MB
●
●
Single loops
and compression
and compression
●
13036 MB
7537 MB
4823 MB
4300 MB
* Multiplying by 3 will give an approximate figure. For instance, all three stereo channels loaded at 24 bit, all loops and lossless compression has been measured as requiring 50878 MB of RAM. It is of course possible to load just two channels (eg Chancel and Surround only), in which case simply multiply these figures by 2.
This comprehensive manual gives full details of installation, further information on system requirements, user interface and performance suggestions as well as some background to the creation of the sample set.
The following links give further information on the Armley Schulze 57 stop sample set ....

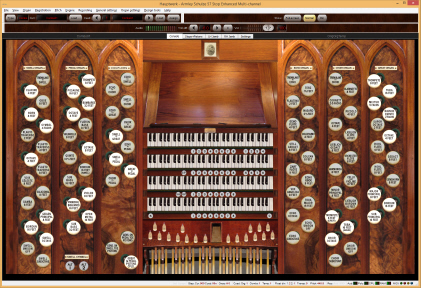

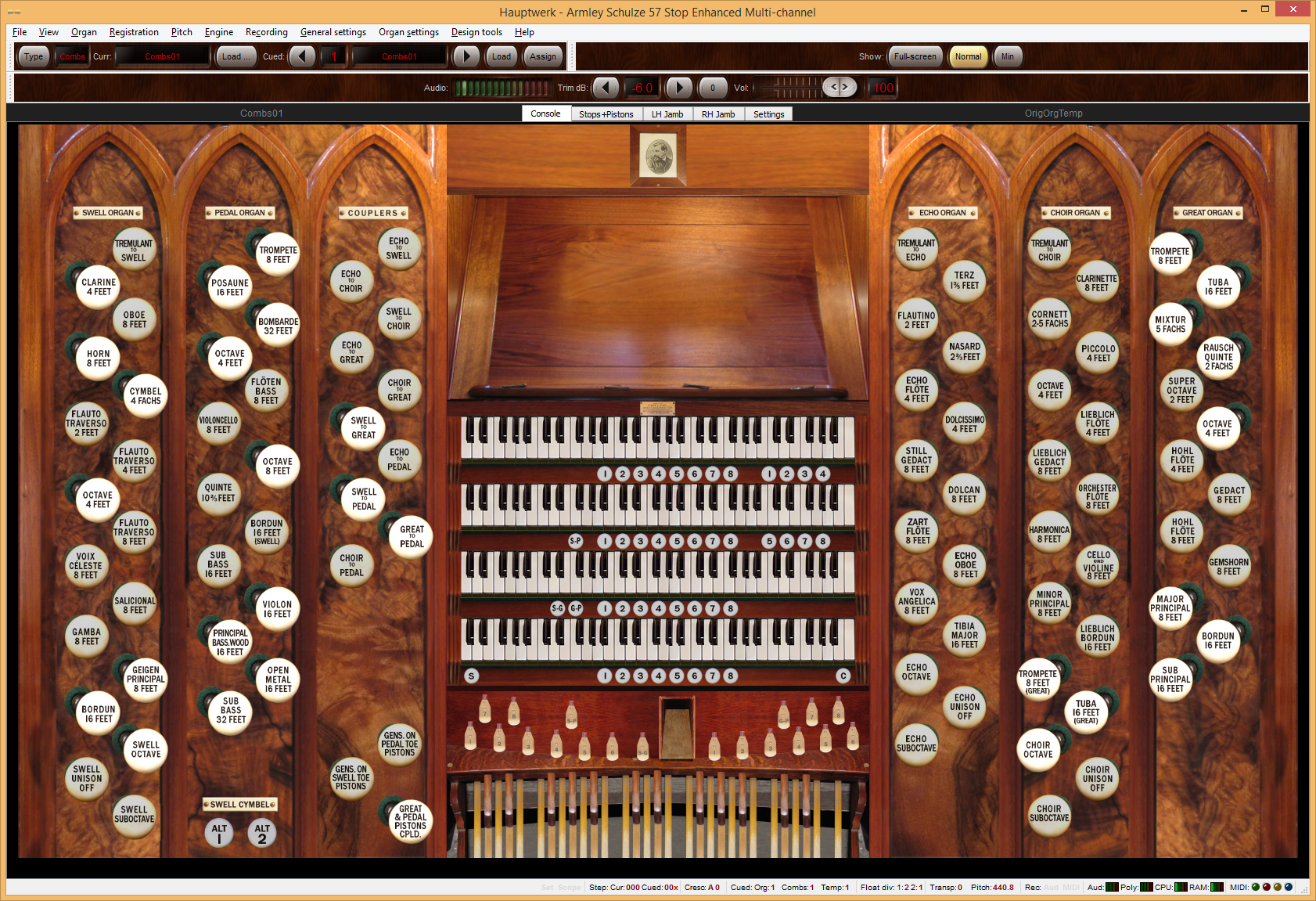

Main Console

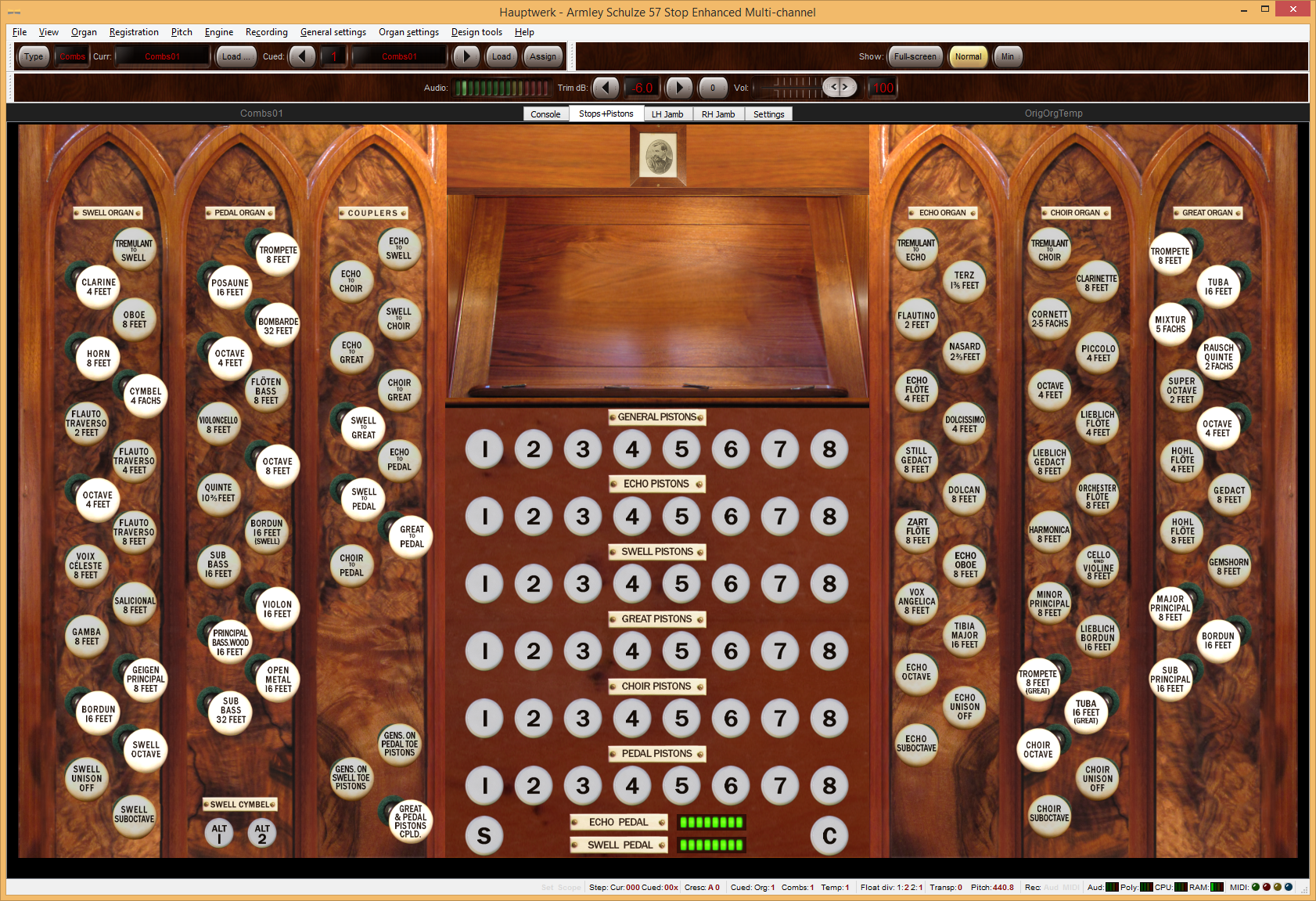

Stops and Pistons
Settings

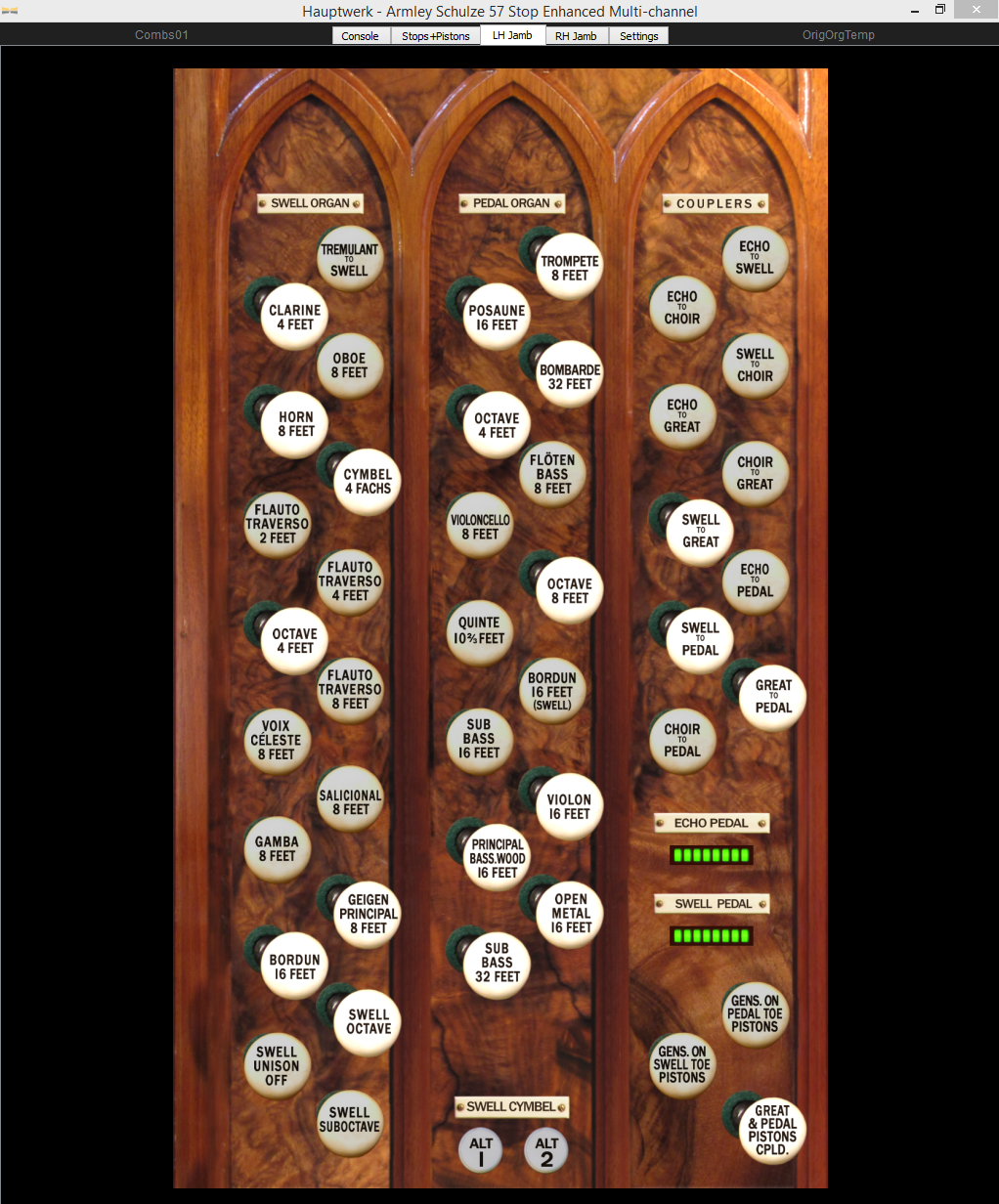

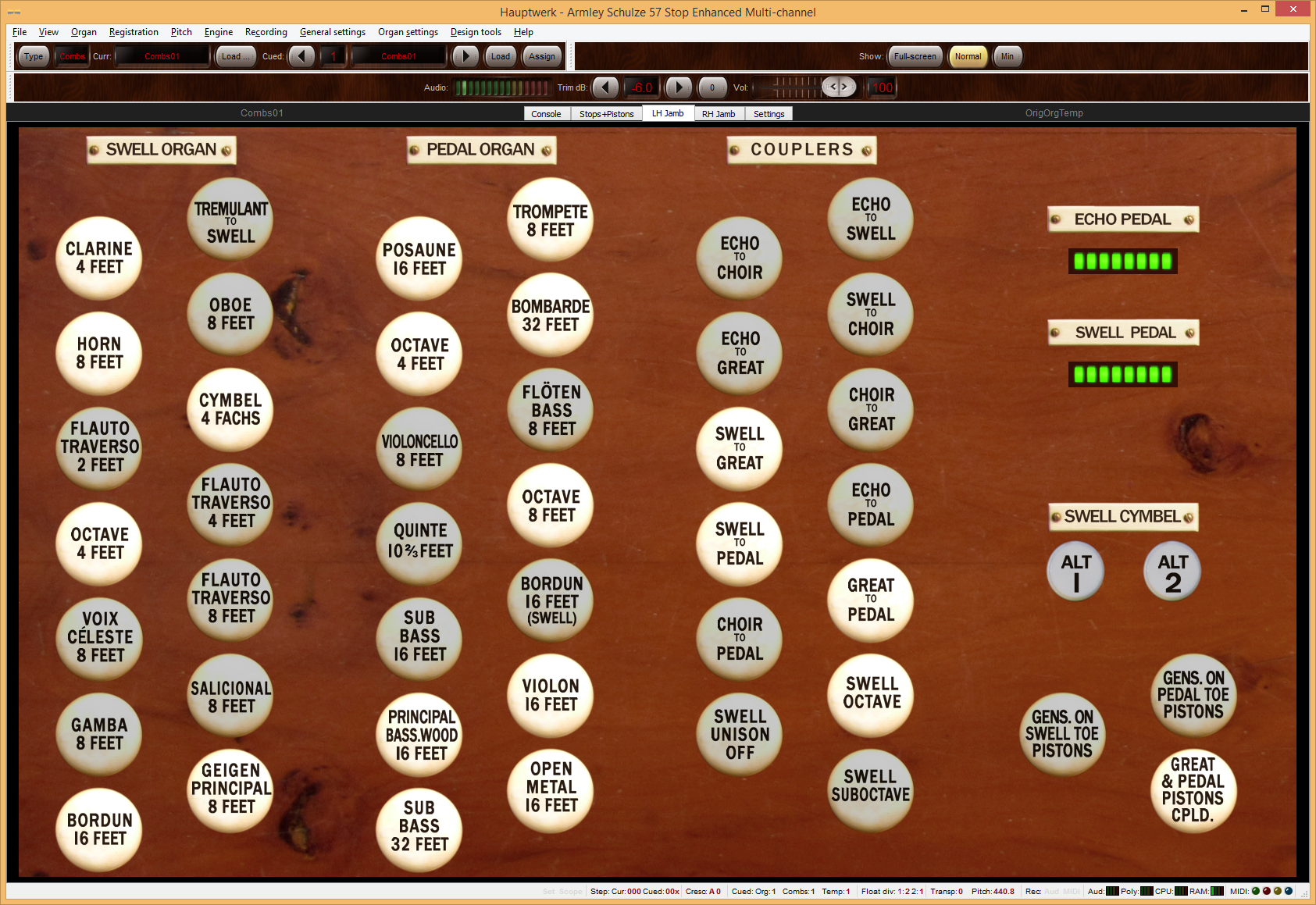

Left Hand Stop Jamb

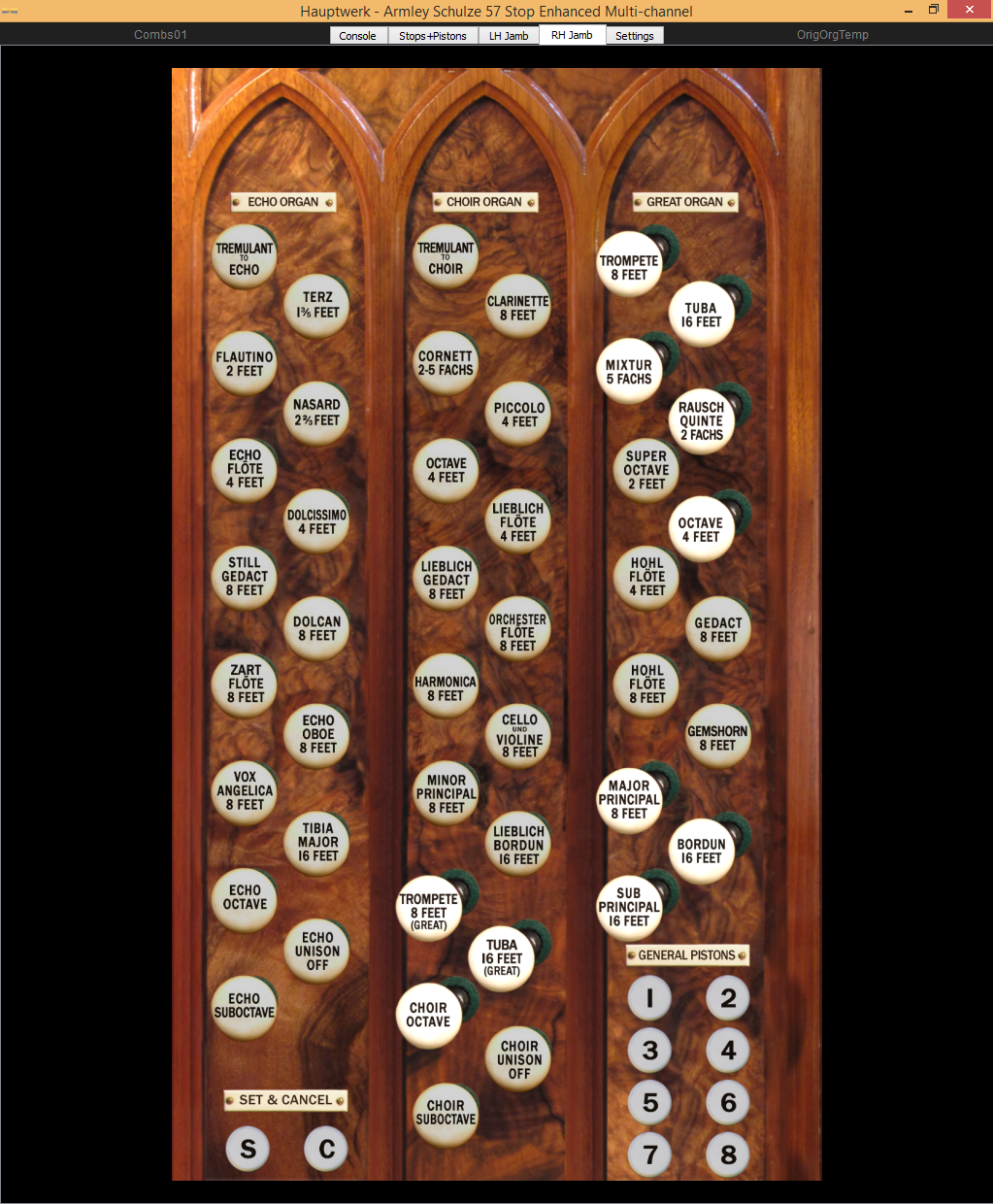

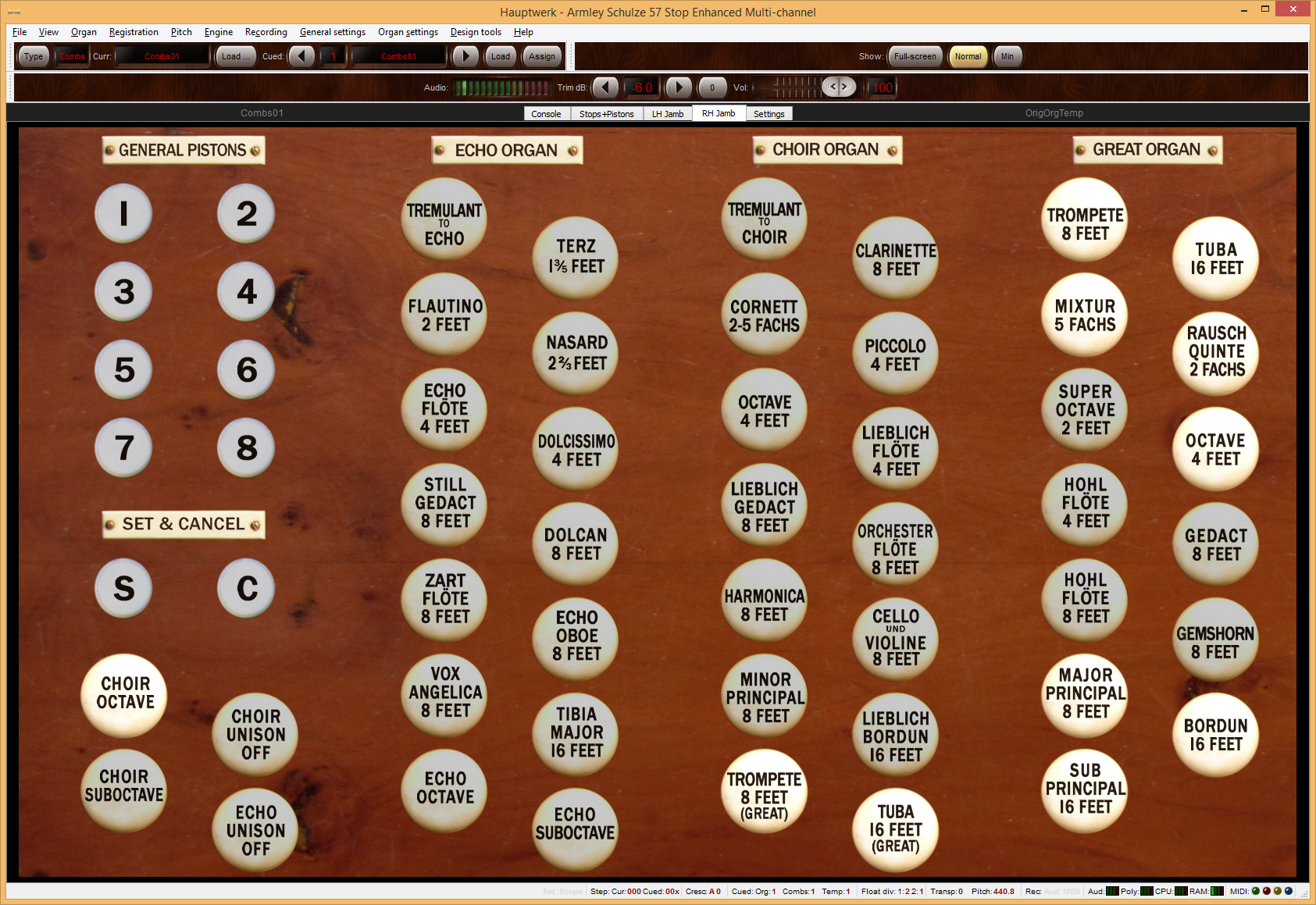

Right Hand Stop Jamb
