HEREFORD COMPLETE

HAUPTWERK SPECIFICATION - HEREFORD CATHEDRAL 67 STOP (COMPLETE)
GREAT
Double Open Diapason
Bourdon
Open Diapason No.1
Open Diapason No.2
Open Diapason No.3
Claribel Flute
Stopped Diapason
Principal No.1
Principal No.2
Flute
Twelfth
Fifteenth
Mixture (17.19.22)
Mixture (19.22.26.29)
Double Trumpet
Trumpet
Clarion

Swell to Great
Swell octave to Great
Swell suboct to Great
Choir to Great
Choir octave to Great
Choir suboct to Great
Solo to Great
Solo octave to Great
Solo suboct to Great

16
16
8
8
8
8
8
4
4
4
2 2/3
2
III
IV
16
8
4









SWELL
Contra Gamba
Open Diapason
Stopped Diapason
Salicional
Vox Angelica
Principal
Lieblich Flute
Fifteenth
Mixture (17.19.22)
Dulzian
Oboe
Tremulant
Double Trumpet
Trumpet
Clarion

Swell octave
Swell suboctave
Swell unison off

Solo to Swell






16
8
8
8
8
4
4
2
III
16
8

16
8
4











CHOIR
Open Diapason
Claribel Flute
Lieblich Gedacht
Dulciana
Gemshorn
Lieblich Flute
Nazard
Spitzflute
Tierce
Mixture (15.19.22)
Trumpet

Choir octave
Choir suboctave
Choir unison off

Swell to Choir
Swell octave to Choir
Swell suboct to Choir
Solo to Choir
Solo octave to Choir
Solo suboct to Choir





8
8
8
8
4
4
2 2/3
2
1 3/5
III
8















SOLO
Viola da Gamba
Voix Celestes
Harmonic Flute
Concert Flute
Hohl Flute
Orchestral Oboe
Clarinet
Cor Anglais
Tremulant
Tromba
Glockenspiel
Tuba

Solo octave
Solo suboctave
Solo unison off

Solo low pressure 16’
Solo high pressure 16’

Great to Solo






8
8
8
4
2
8 / 16
8 / 16
8

8 / 16
4
8














PEDAL
Double Open Bass
Open Bass
Open Diapason
Bourdon
Principal
Stopped Flute
Fifteenth
Open Flute
Mixture
Bombarde
Ophicleide
Trombone
Trumpet
Clarion

Great to Pedal
Swell to Pedal
Choir to Pedal
Solo to Pedal
Swell octave to Pedal
Choir octave to Pedal
Solo octave to Pedal

Great & Pedal combinations coupled


32
16
16
16
8
8
4
4
IV
32
16
16
8
4
The 67 stop Hereford Cathedral sample set is the complete instrument with all stops sounding, along with the programming of a crescendo function and a redesign of the left and right hand jambs.

There is also an “XL” version of this sample set which is included with the 67 stop set. For customers placing orders before March 2013, the additional components needed for the XL set are available as a free download here. A DVD is also available to order at a nominal cost to cover media, handling and delivery. The XL version includes the various features, including ...

Ÿ
Manual compasses extended to 61 notes / Pedal compass extended to 32 notes
Ÿ
Separate draws for the Solo 16 / 8 foot stops
Ÿ
Great reeds on Choir (drawstop acting as a transfer)
Ÿ
New stop - Choir Lieblich Bourdon, also  available duplexed on to the Pedal
Ÿ
Enclosed Choir organ
Ÿ
New chimes samples on both Solo and Choir

Full details of the changes are available here.
With 67 stops and 4 separate tremulants speaking into a fairly large acoustic, computer processor and memory requirements are moderately demanding, even by today's computing standards (August 2012). An absolute minimum of Hauptwerk Advanced Edition running on a 64 bit operating system, 8GB RAM and a good dual core processor is suggested, with a preference for at least 12 GB RAM and a quad core processor. Although Hauptwerk version 3 (minimum v 3.23) is supported, Hauptwerk version 4 is highly recommended for the extra flexibility and features it offers.
The following table gives very approximate figures for the amount of RAM (memory) the organ requires with various different loading options set. None of these figures take into account the RAM needed by the operating system. Where no figure is given, that particular loading option (although valid) hasn't been tested, generally because it wouldn't make sense to use it.
Hereford 67 Stop
24 bit
20 bit
16 bit
14 bit
Uncompressed
23130 MB
11735 MB
Lossless
compression
14200 MB
12150 MB
7510 MB
Single loops
and compression
10495 MB
6370 MB
5590 MB
Single loops, releases and compression
3385 MB

USER MANUALS



These comprehensive manuals give full details of installation, further information on system requirements, user interface and performance suggestions as well as some background to the creation of the sample set.

The following links give further information on the Hereford Cathedral 67 stop sample set ....
Hereford 67 stop screenshots (click on the thumbnail for full resolution view) ...
Main Console
Stops and Pistons
Settings
Left Hand Stop Jamb
(portrait HW v4 only)

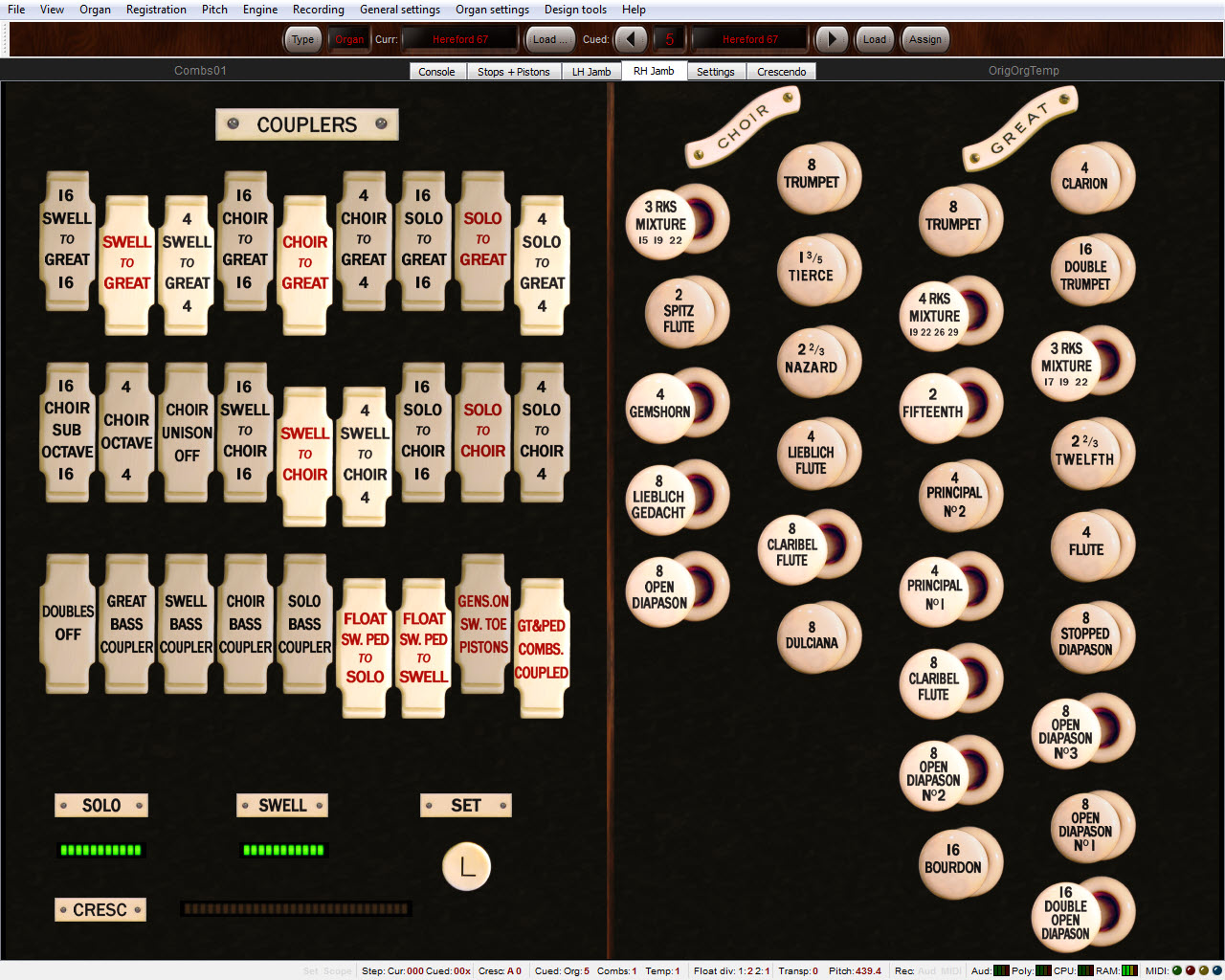

Right Hand Stop Jamb
(portrait HW v4 only)
Crescendo
Hereford 67 XL version
24 bit
20 bit
16 bit
14 bit
Uncompressed
24997 MB
12405 MB
Lossless
compression
15050 MB
12850 MB
7950 MB
Single loops
and compression
11080 MB
6735 MB
5900 MB
Single loops, releases and compression
3580 MB
Hereford 67 stop XL version screenshots (Main Console screen is as shown above) ...
Left Hand Stop Jamb
(portrait HW v4 only)
Right Hand Stop Jamb
(portrait HW v4 only)
Stops and Pistons
Crescendo
Settings
67 stop user manual
67XL user manual
