HAUPTWERK v3 SPECIFICATION - FULL SET
GREAT
Double Open Diapason
Open Diapason
Viola
Hohl Flute
Principal
Harmonic Flute
Nazard
Fifteenth
Mixture
Posaune
Trumpet en Chamade

Swell to Great
Swell octave to Great
Swell suboct to Great
Choir to Great


16
8
8
8
4
4
2 2/3
2
III
8
8






SWELL
Bourdon
Open Diapason
Stop Diapason
Viole d’Orchestre
Vox Angelica
Voix Celestes
Geigen Principal
Suabe Flute
Flautina
Mixture
Contra Fagotto
Cornopean
Oboe
Clarion
Tremulant

Swell octave
Swell suboctave

16
8
8
8
8
8
4
4
2
III
16
8
8
4



CHOIR
Geigen Diapason
Viol di Gamba
Concert Flute
Dolce (tenor C)
Suabe Flote
Mixture
Orchestral Oboe
Clarinet
Trumpet en Chamade
Tremulant

Swell to Choir






8
8
8
8
4
II
8
8
8







PEDAL
Harmonic Bass
Open Diapason
Bourdon
Principal
Bass Flute
Fifteenth
Trombone
Tromba


Great to Pedal
Swell to Pedal
Choir to Pedal





32
16
16
8
8
4
16
8
The Hauptwerk sample set for the original organ has a specification that is virtually identical to the existing instrument. The one addition is the Great Harmonic Flute 4‘, which is simply the Nazard transposed down 7 notes - the two stops are presented as one unified rank. This allows the player access to the Harmonic Flute as intended by Binns without sacrificing the extra colour the Nazard provides ... the best of both worlds. Although the Nazard is tuned as a pure twelfth rank, the lack of upper harmonics don’t cause any real problem when it is played as a four foot stop.

Two organ definition files (ODFs) are provided to cater for differing screen requirements, one requiring a display resolution of 1280 x 1024 with the alternative designed to run on the Hauptwerk minimum screen resolution of 1024 x 768.
By way of a bonus, the Mini Set organ definition file is also included.

Computer system requirements are not too demanding by the standards of today’s machines. A 64 bit operating system, dual core processor and 4 GB RAM is preferred but not essential - please see the user guide (download link below) for more details of memory usage. This set has been tested on a Windows XP 32 bit system with 3GB RAM and it will load with all stops enabled, provided that single loops are selected for all stops (other loading options set to default, ie lossless compression, 16 bit samples, multiple releases).

This set is protected by the dongle licensing system, which will involve a dongle licence upgrade arranged by Milan Digital Audio. The organ definition file is not encrypted.
Please investigate the links below to learn much more about the Haverhill OIC sample set ...
USER MANUAL
This comprehensive manual gives full details of installation, system requirements, user interface and performance suggestions as well as some background to the creation of the sample set.
DEMOS
A dedicated page to showcase the wide variety of sounds the Haverhill OIC sample set is capable of producing.
DOWNLOADABLE EVALUATION SET
A 10 stop evaluation sample set which allows you to experience a part of the organ at first hand.

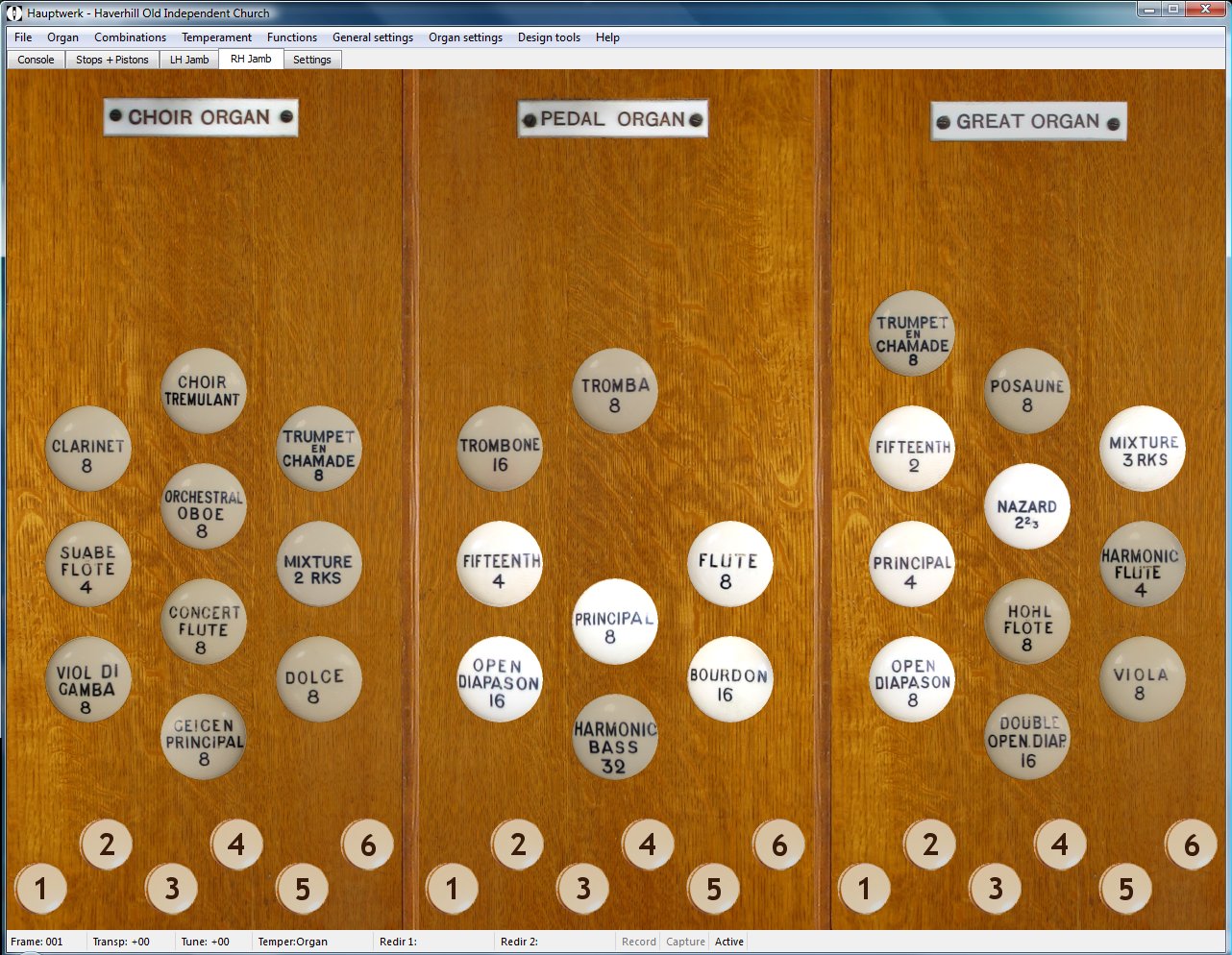

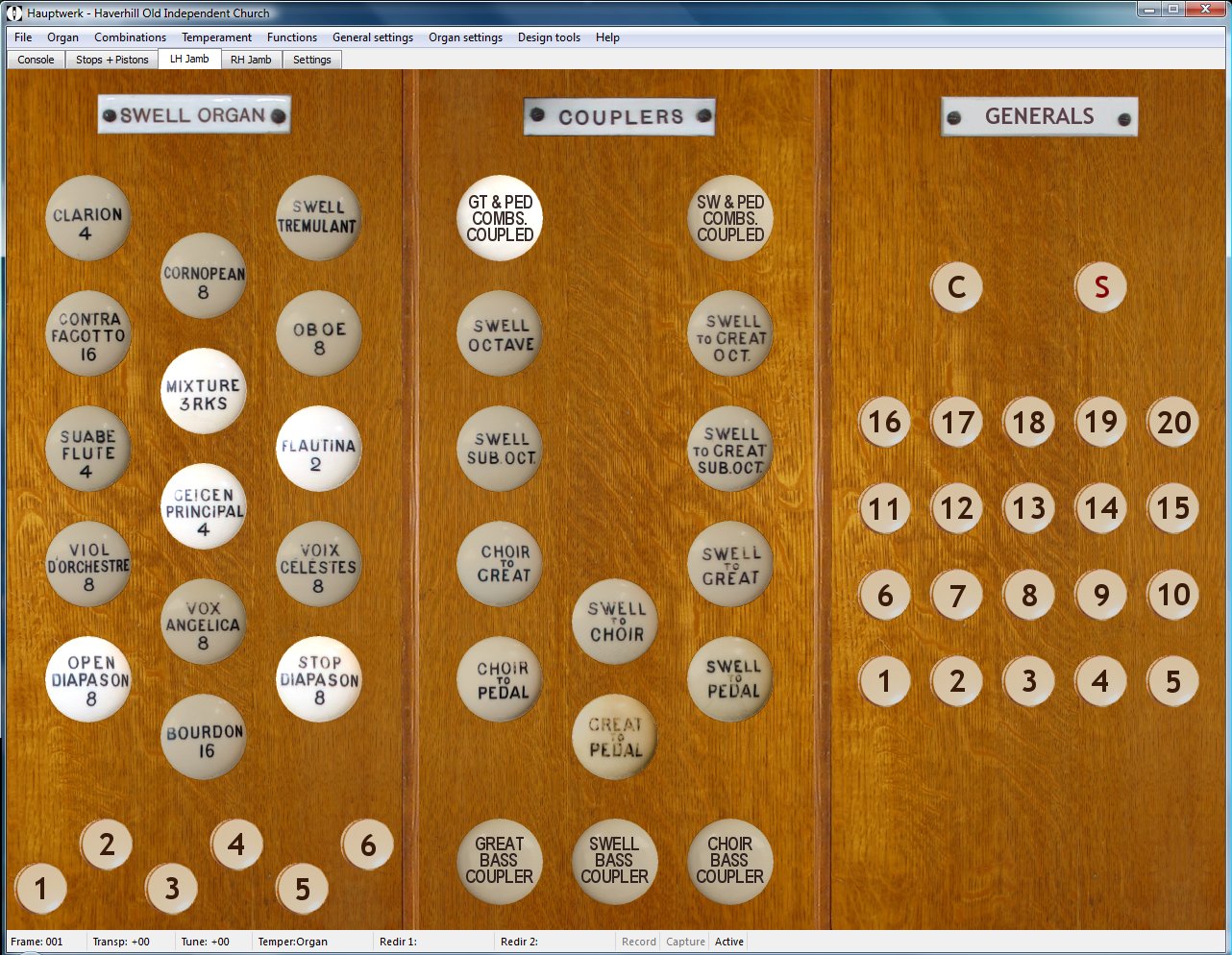

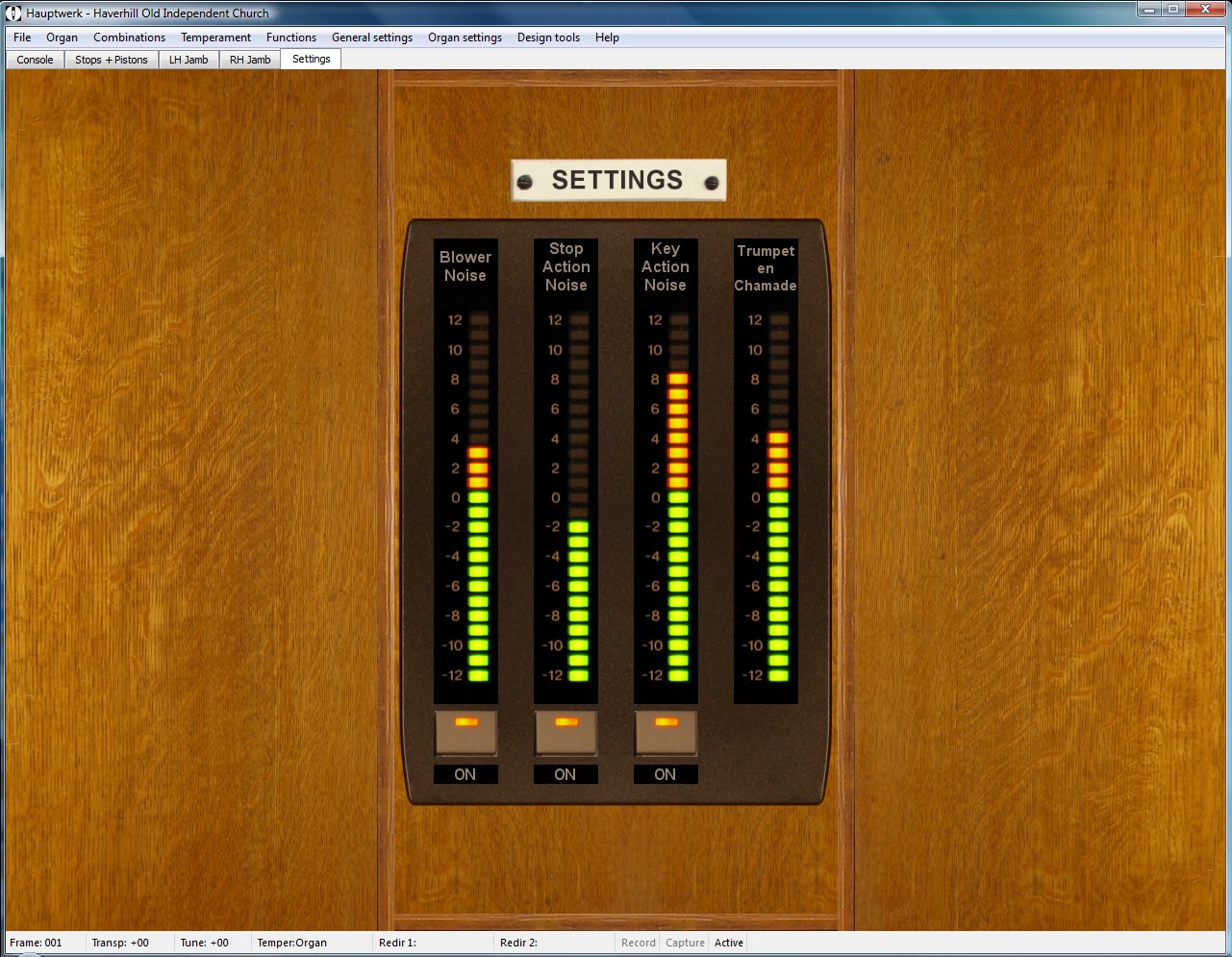

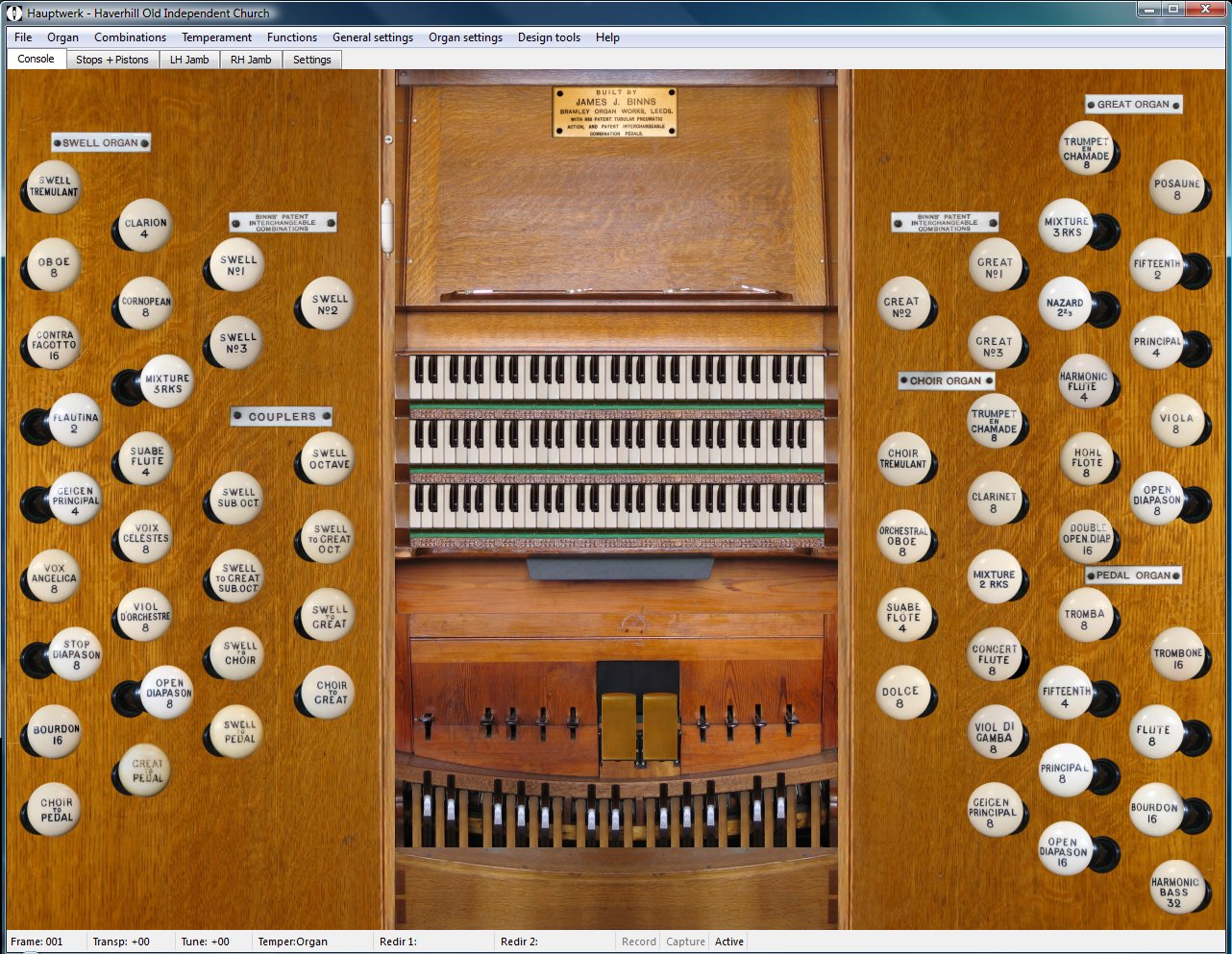

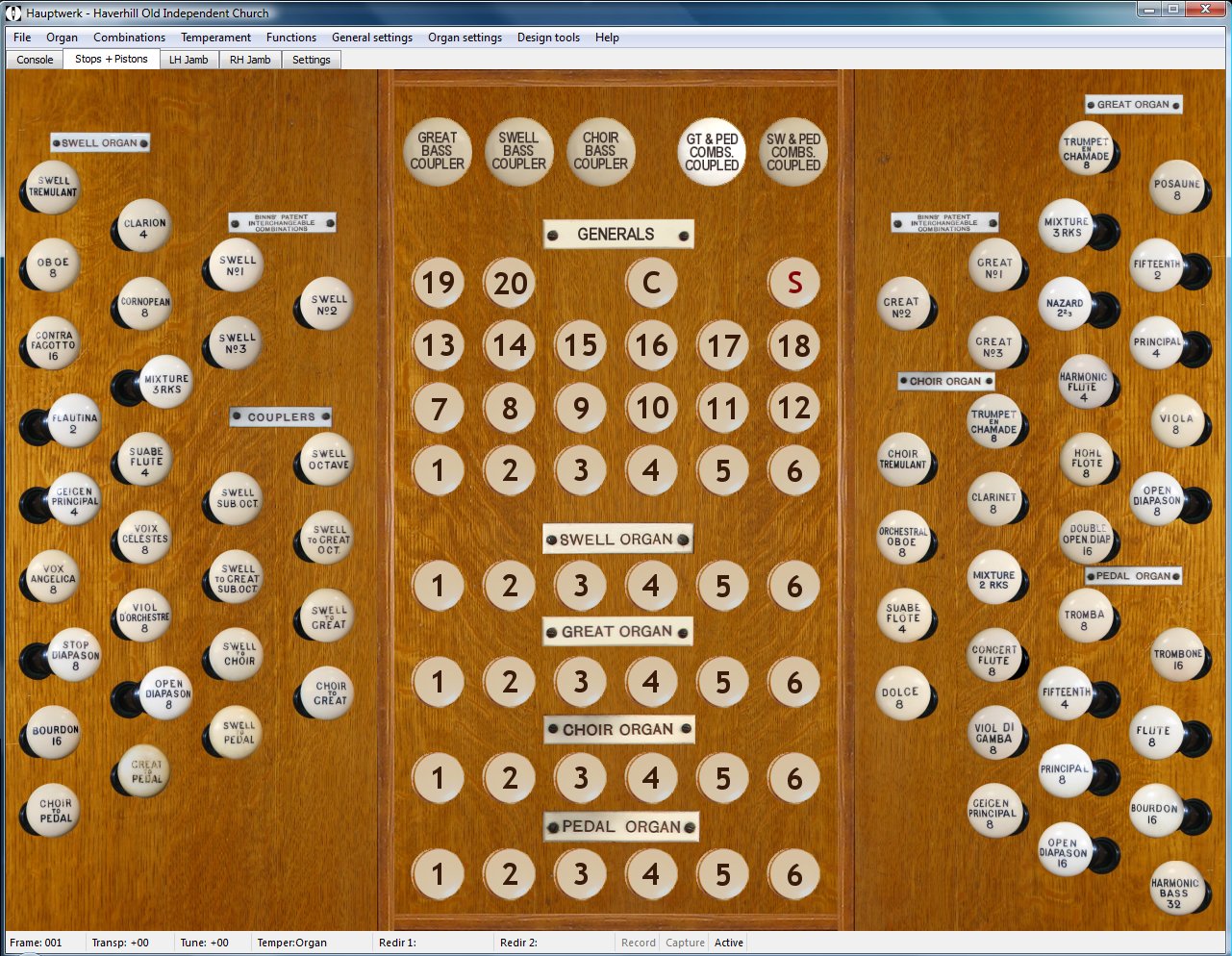

1280 x 1024 Screenshots (click thumbnail for full resolution view)

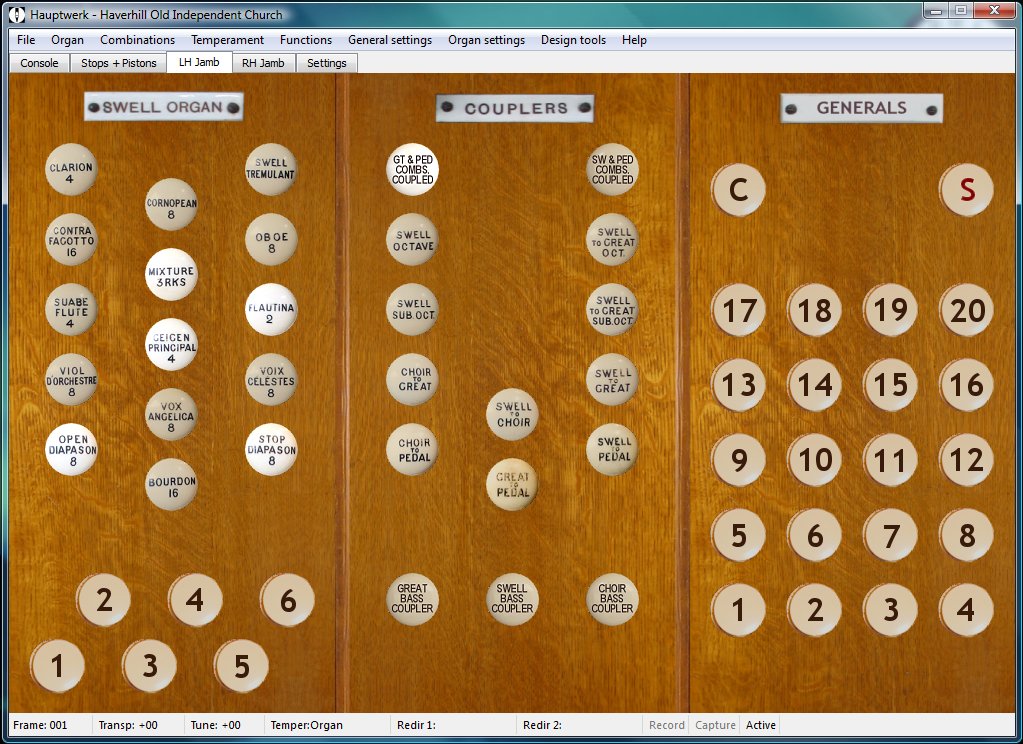

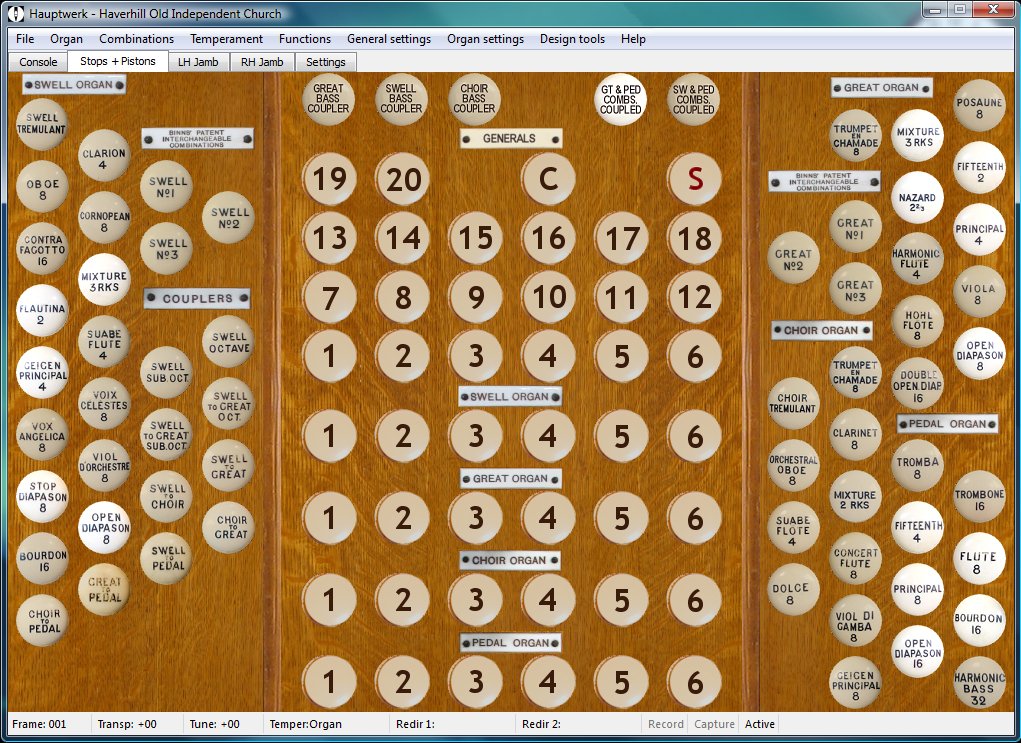

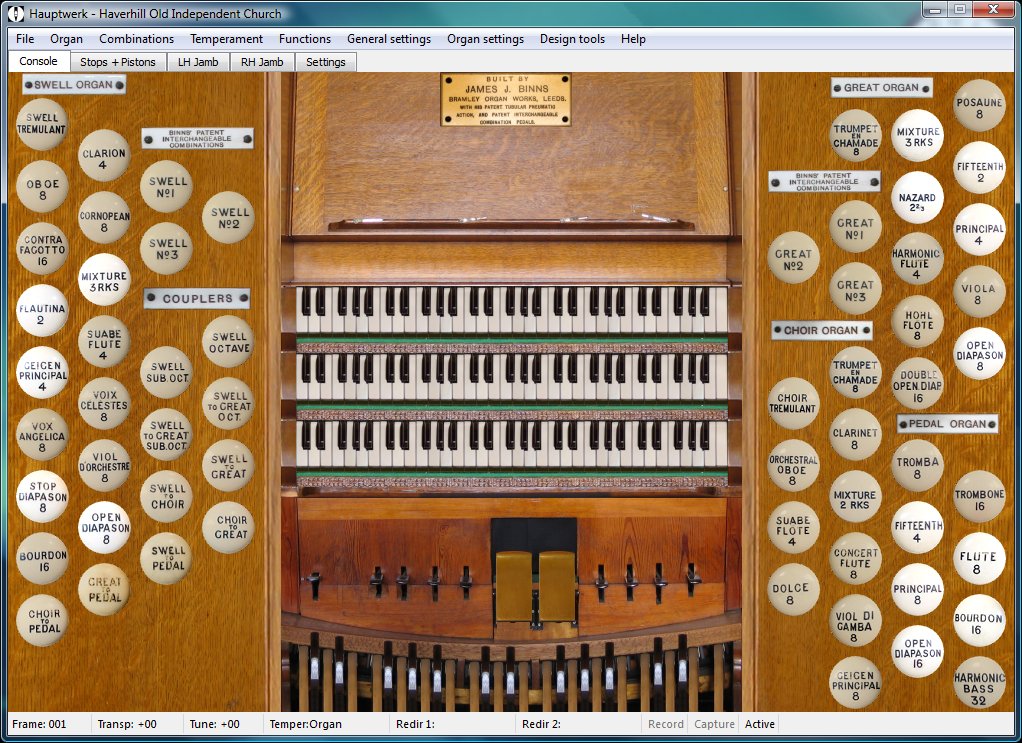

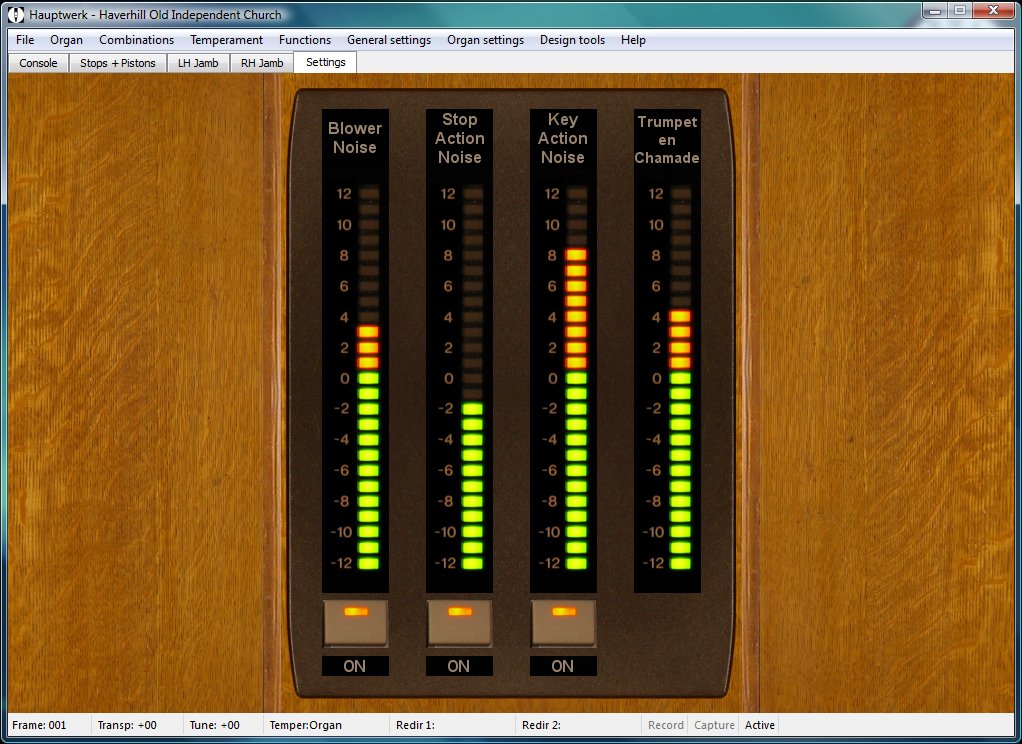

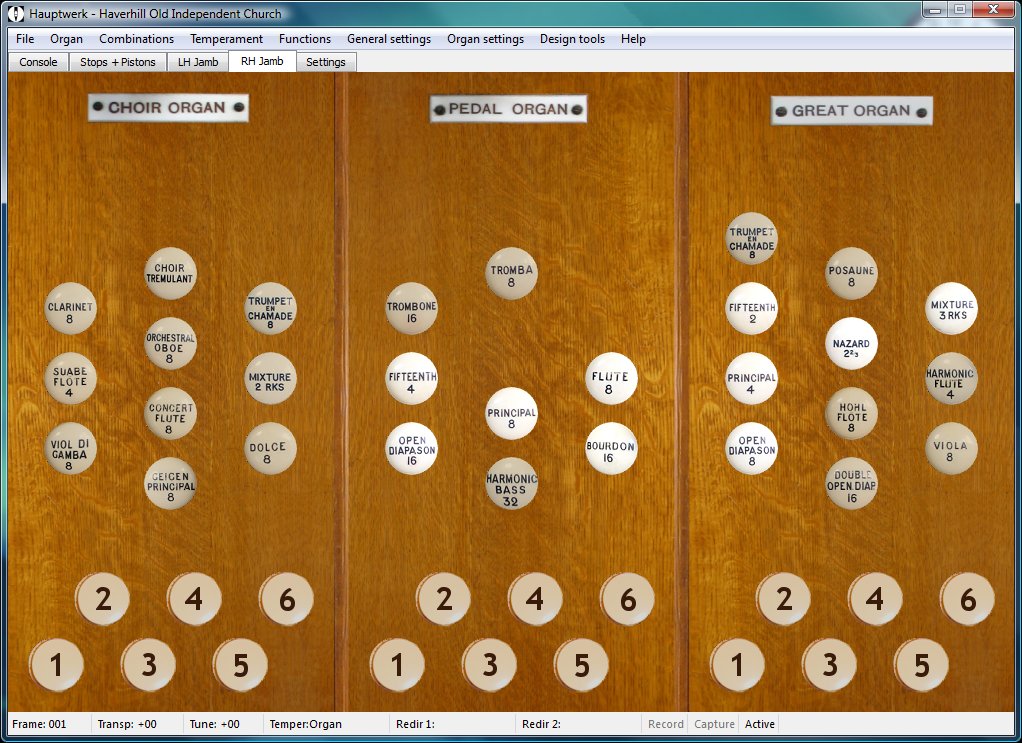

1024 x 768 Screenshots  (click thumbnail for full resolution view)
